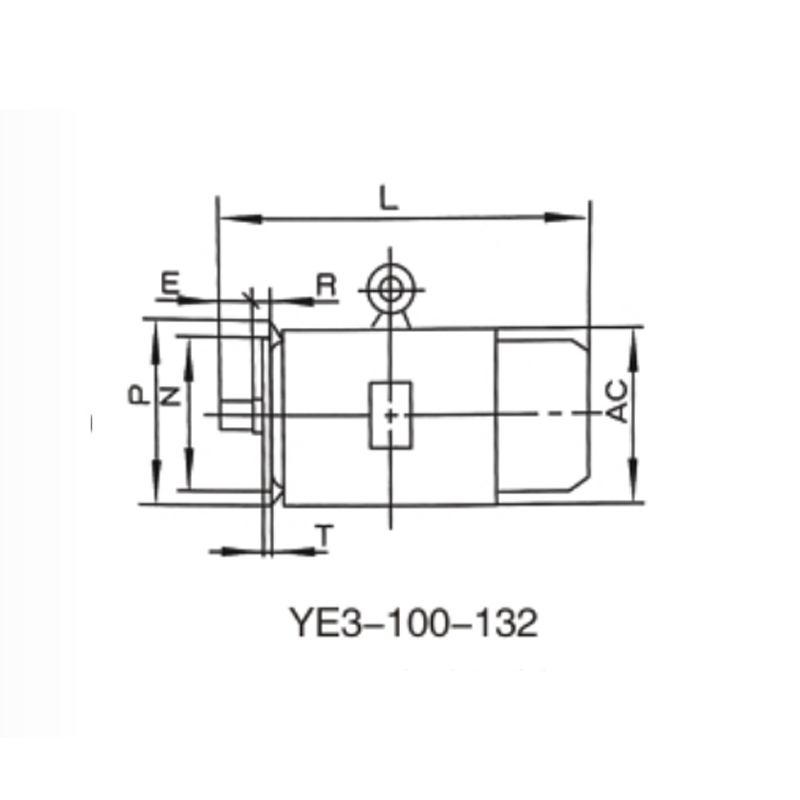

YE3-100-132

Frame without foot end shield with flange(B5)

For more information, please send an email or call our hotline

Frame without foot end shield with flange(B5)
Frame	Ploes	D	E	F	G	M	N	P	R	S	T	Holes	AC	AD	HF	L
80M	2.4.6.8	19	40	8	15.5	165	130	200	0	12	3.5	4	175	145		305
90S		24	50		20								195	165		360
90L																390
100L		28	60		24	215	180	250		14.5	4		215	180		435
112M													240	190		470
132S		38	80	10	33	265	230	300					275	210	315	510
132M																560
160M		42	110	12	37	300	250	350		18.5	5		330	255	385	730
160L																760
180M		48		14	42.5								380	280	430	740
180L																790
200L		55		16	49	350	300	400					420	305	480	790
225S	4.8	60	140	18	53	400	350	450				8	470	335	535	865
225M	2	55	110	16	49											865
	4.6.8	60	140	18	53											890
250M	2					500	450	550					510	370	595	915
	4.6.8	65			58
280S	2												580	410	650	985
	4.6.8	75		20	67.5
280M	2	65		18	58											1035
	4.6.8	75		20	67.5
